Ebrahimian Residence

Custom Home and Estates Project of Hamlet Zohrabians Architect Inc.

About this project.

These drawings and specifications are the property and copyright of DUNAMIS ARCHITECTS, and shall not be used on any other work except by agreement with DUNAMIS ARCHITECTS. Written dimensions take precedence over scaled dimensions and shall be verified by the contractor on the job site. Any discrepancy shall be brought to the atention of DUNAMIS ARCHITECTS prior to the commencement of any work


The Preliminary drawing indicates the general scope of the project in terms of architectural design concept, the dimensions of the building, the major architectural elements and the type of structural, mechanical, electrical systems. As scope documents the drawings do not necessarily indicate or describe all work required for full performance and completion of the requirements of the contract documents. On the basis of the general scope indicated or described, the contractor shall furnish all items required for proper execution and completion of the work.

A4.1 PROPOSED BUILDING EAST AND NORTH ELEVATIONS

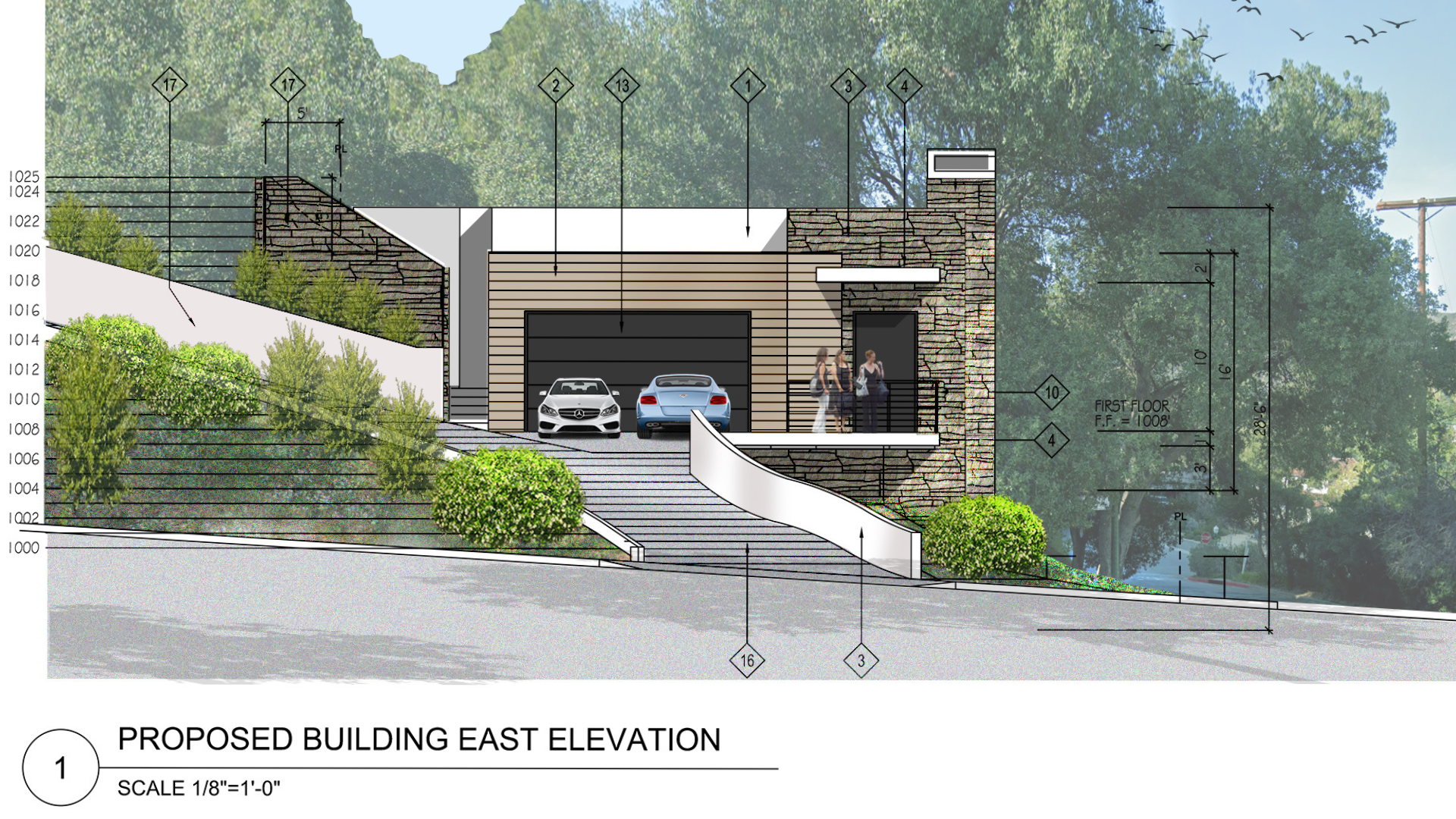

PROPOSED BUILDING EAST ELEVATIONS

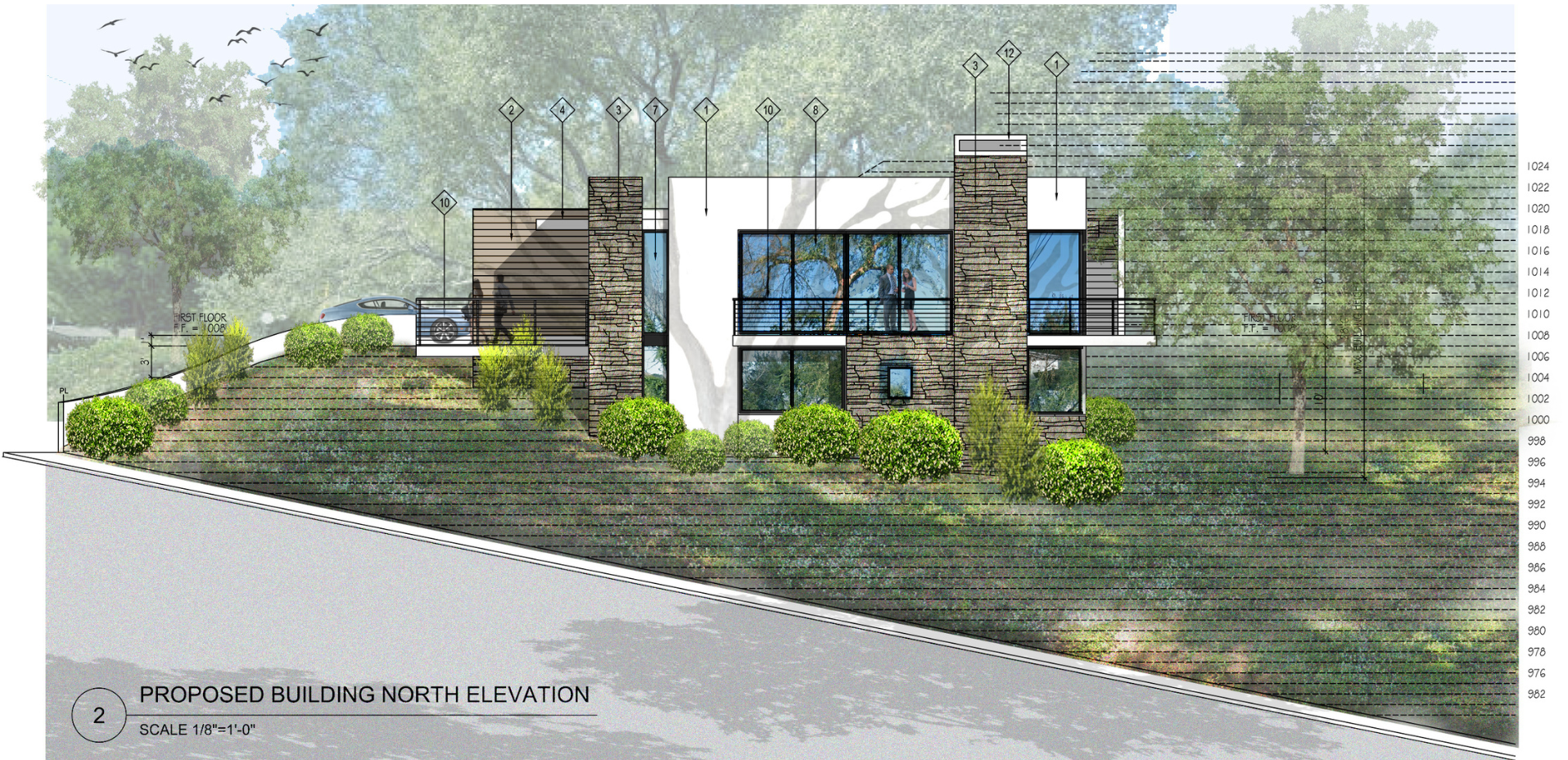

PROPOSED BUILDING NORTH ELEVATIONS

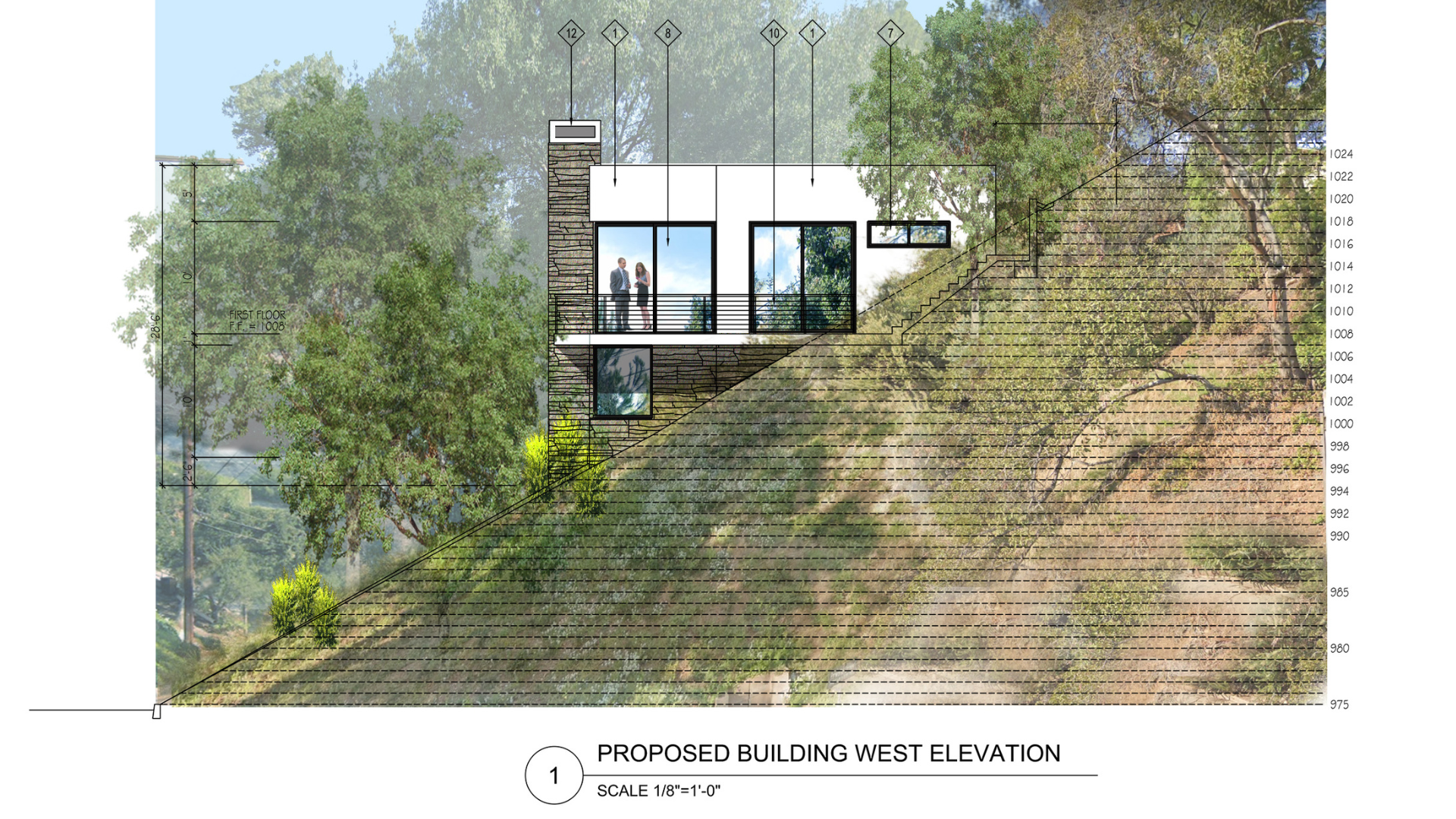

A4.2 PROPOSED BUILDING WEST ELEVATIONS

A drawing of a house on a hill with trees in the background

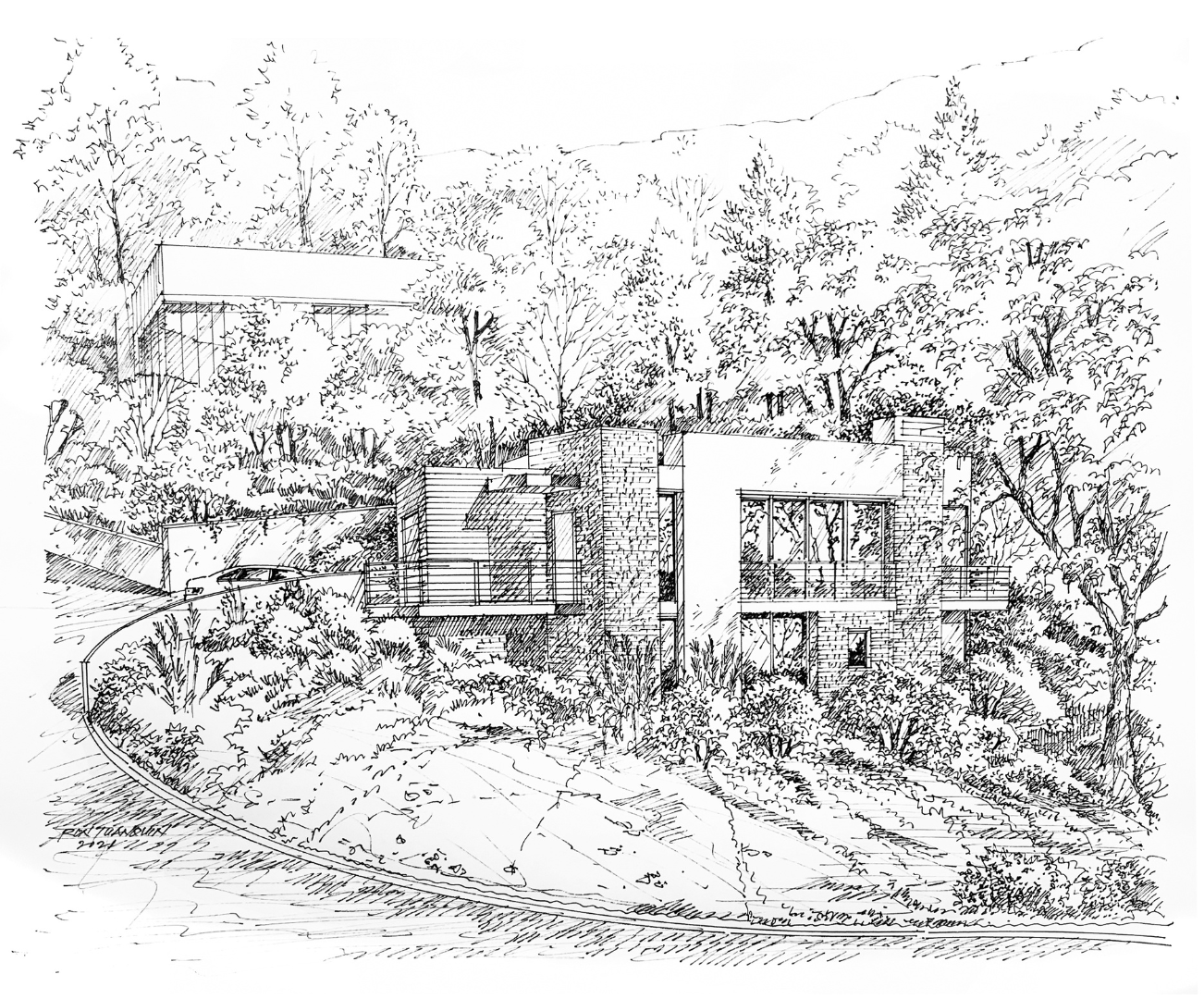

PERSPECTIVE VIEW

A black and white drawing of a house surrounded by trees.

LOCATION:

  • Glendale, CA 91206

SHEET:

  • A4.1
  • A4.2
  • PERSPECTIVE

PERSPECTIVE RENDERING:

  • DATE: 12.11.21
  • SCALE: 1/8" 1'-0"
  • DRAWN BY: HZ
  • JOB NUMBER: 050419

KEY NOTES:

  • 1" SMOOTH TROWLED FINISH CEMENT PLASTER OVER PAPER BACKED METAL LATH OVER PLYWOOD SHEATHING ON EXTERIORSIDE OF 2 x 6 AT 16" O.C. AND A LAYER OF 5/8" GYPSUM BOARD ON THE INTERIOR SIDE. PROVIDE R-15 INSULATION IN STUD SPACE
    COLOR: Lahabra Stucco Solutions (Charleston)
  • COMPOSITE WOOD SIDING
    COLOR: Trespa Pura (Siberian Larch)
  • LEDGSTONE VENEER
    COLOR: Cultured Stone (Hewn Stone "Talus")
  • PRE-PAINTED STEEL BEAM CANOPY
    COLOR: Match window frame color
  • PRE-PAINTED METAL COPING (INVISIBLE)
    COLOR: Black
  • PRE-PAINTED METAL GUTTER AND DOWN SPOUT
    COLOR: Black
  • FIBER GLASS FRAMED DUAL GLAZED WINDOW
    COLOR: Ebony
  • FIBER GLASS FRAMED DUAL GLAZED PATIO DOORS
    COLOR: Ebony
  • PAINTED HOLLOW METAL FRAMED GLASS ENTRY DOOR
    COLOR: Black
  • STAINLESS STEEL CABLES IN METAL FRAME RAILING
    COLOR: Black
  • SEALED CONCRETE STEP COLOR: Natural Gray (Top Cast)
  • PAINTED METAL CHIMNEY CAP
    COLOR: Black
  • PRE-PAINTED METAL FRAMED GLASS SECTIONAL GARAGE DOOR
    COLOR: Black
  • METAL ADDRESS NUMBERS (illuminated by exterior lighting)
    COLOR: Black
  • PRE-FINISHED METAL WALL LIGHT
    COLOR: Black
  • INTERLOCKING CONCRETE PAVED DRIVEWAY
    COLOR: Gray
  • SPLIT FACE STAKED CMU RETAINING WALL
    COLOR: Natural Gray
